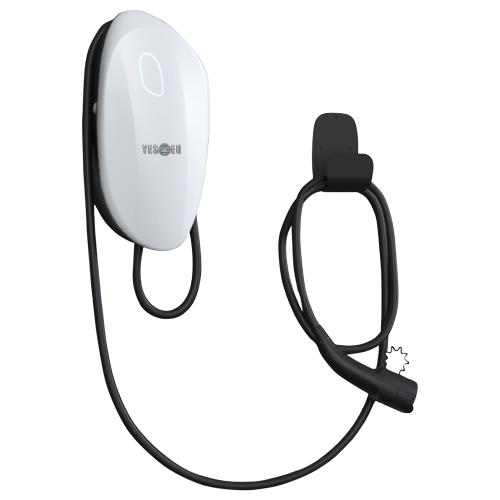

Extremely compact and user-friendly charger for electric cars. Supports single-phase 230 V and three-phase 400 V power. The charger is quick and easy to install in a wall mount or floor stand and connect to the building’s mains. Charging with RFID tag or app. Charging cable length 5 meters.
Properties
- Total power output
- 7-22 kW
- Nominal current (configurable)
- 16A / 32A
- Communication
- 4G and Bluetooth (Wifi, Ethernet optional)
- OCPP support
- OCPP 1.6 J
- Country of manufacture
- China
- Charging standard
- IEC 61851-1,IEC 61851-21-2,IEC 62196-2,IEC 62955
- Charging cables
- Type 2 connector, length 5 metres
- Operating environment
- Suitable for use indoors and outdoors
- Operating temperature
- -30°C - +50°C
- Dimensions, mm (W, D, H)
- 393 x 191 x 143
- Enclosure protection
- IP56
- Status display
- LED
- Charging mode
- RFID Tag / APP
