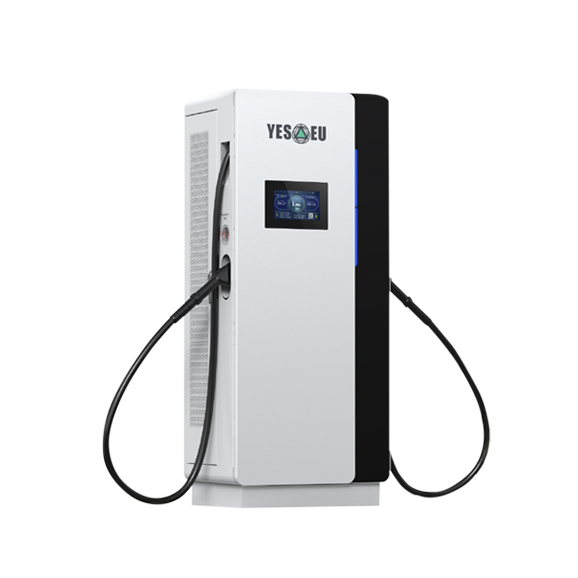

High-quality 60 kW charger designed for indoor and outdoor use. This product is suitable for continuous, round-the-clock charging at full power. Up to 1,000 VDC output voltage, supports all EVs with 800 V systems.
Properties
- Total power output
- 60 kW
- Rated output
- 60 kW
- Maximum output current
- 72 A
- Output voltage
- 200 - 1000 Vdc
- Supply voltage
- 400 Vac
- Maximum input current
- 100 A
- Communication
- 4G, Ethernet
- OCPP support
- OCPP 1.6 json
- Country of manufacture
- China
- Charging standard
- IEC61851-1 / IEC61851-23
- Charging cables
- 2 x CCS2 charging cable - length 5 or 7 meters
- User interface
- 7” colour touchscreen
- Card reader
- RFID
- Operating environment
- Suitable for use indoors and outdoors
- Operating temperature
- -20°C - +50°C
- Dimensions, mm (W, D, H)
- 750 x 550 x 1800
- Weight
- 250 kg
- Enclosure protection
- IP54
